The ALTRA 280 is a high-performance industrial powerhouse with 4 state-of-the-art extruders for peak-level 3D printing for demanding applications.
3D printing is made possible by the capabilities at high temperatures for demanding industries like aerospace, defense, and automotive. The ALTRA 280 is a large, quick, dependable, high-temperature industrial machine that does everything at once. It provides complex parts of high production quality without compromising.

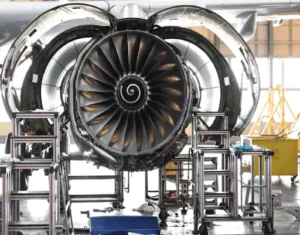

Innovate and meet the requirements for aerospace industry certifications. The IPSO 105 prints with superior execution materials making solid, protected, light-weight parts. Innovations at all stages of the design workflow are made possible by high precision, repeatability, and resolution.
Validate and test designs before moving on to final production. With the open-material system, you can accurately replicate the final part using a wide range of filaments. Reduce manufacturing costs, accelerate product introduction, and iterate more quickly.

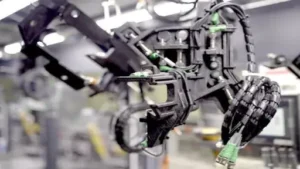

Build jigs and fixtures, which are inexpensive rapid tooling for your factory floor, at a low cost. High-temperature capabilities enable in-house production of robust and geometrically intricate tools. overcome outmoded conventional methods and print on demand tools.
Version | BigRep ALTRA 280 | |
Build volume | 500mm x 700mm x 800mm (x,y,z) | |
BigRep materials | ABS, ASA, BVOH, HI-TEMP, HI-TEMP CF, PA12 CF, PA6/66, PETG, PLA, PLX, PRO HT, TPU 98A | |
Compatible materials | ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PA12-GF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC, ULTEM 9085 (Open for 3rd party materials) | |
Extruder | Direct Synchronized Extruder (DSX) | |
Extruder configuration | Water-cooled multi-DSX (up to 4 extruders) | |
Hotends | Precise, Power, or High Flow | |
Nozzles | Brass or hardened steel | |
Nozzle diameters | 0.4mm, 0.6mm, 1.0mm | |
Layer thickness | From 0.05mm | |
Extruder temp | Up to 450°C | |
Build chamber temp | Up to 180°C | |
Print bed temp | Up to 180°C | |
Max print speed | Up to 350 mm/s | |
Max throughput | Up to 250 g/h | |
Position accuracy | < 0.05mm in XY | |
Movement speed | XY~400 mm/s | |
Drive technology | Servo motor in XYZ | |
Air cleaning unit | Filtration system with active carbon filter and HEPA filter | |
Safety circuit | Unmanned 24/7 operation | |
Connectivity | USB, network | |
Pause printing | Out-of-filament sensor with smart ʻstop and goʼ function (build chamber and print bed remain heated) | |
Slicing software | Simplify3D, others available on request | |
Machine control | HAGE3D industrial control | |
HMI | LED + 12.1” touchscreen | |
Camera | Wide angle color HD camera for real time remote monitoring | |
Override function | Manual override in real time | |
User Access | Multi-level user permissions | |
Power supply | 400 V / 32 A | |
External dimensions | 2550mm x 1950mm x 1920mm (x,y,z) | |
Weight | Approx. 1980kg | |
