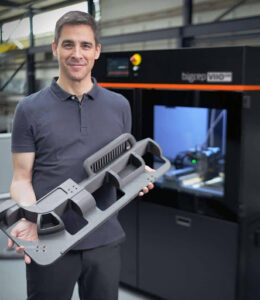

The large-scale BigRep VIIO 250 is a fully automated 3D printer for reliable continuous industrial manufacturing. To achieve this, the machine is built with breakthrough automation features: auto-calibration, auto-sequential printing, and automated filament handling to deliver maximized machine efficiency. Featuring dual Smart Manufacturing Extruders and an intuitive user machine interface with animated guides, using an industrial 3D printer has never been this easy. With the VIIO 250, spend less time printing and more time doing.
Discover the BigRep VIIO 250: A cutting-edge, fully automated 3D printer designed for continuous industrial manufacturing. Featuring breakthrough automation including Relay Mode for backup extrusion, auto print bed calibration, auto-sequential printing, and the Infinity Box for filament handling. Enhance efficiency and reduce production costs with dual Smart Manufacturing Extruders and an intuitive user interface. Revolutionize your production process with high-quality, energy-efficient prints in less time.
Make robust components for a variety of automotive applications. Using materials of the highest caliber for engineering, the VIIO 250 prints robust, lightweight components. The exceptional precision, consistency, and sharpness facilitate advancements across the whole design process.
Validate parts and test designs prior to final manufacturing. With the open-material approach, you may recreate the final part precisely and select from a large selection of filaments. Reduce production expenses, iterate more quickly, and launch your goods more quickly.
Make quick, inexpensive tooling for your manufacturing floor, such fixtures and jigs. The automation capabilities enable you to build geometrically difficult tools in-house with reliability. Overcome antiquated methods and produce tools as needed.
Version | BigRep VIIO 250 | |
Build volume | 1000 mm x 500 mm x 500 mm (x,y,z) | |
Compatible materials | BigRep ASA, BVOH, HI-TEMP, HI-TEMP CF, PA12 CF, PA6/66, PETG, PLA, PLX, PRO HT, TPU 98A (Open for 3rd party materials) | |
Support materials | BigRep BVOH (Open for 3rd party materials) | |
Filament diameter | 2.85 mm | |
Extruders | Dual Smart Manufacturing Extruders (SMX) | |
Nozzles | Tungsten carbide (0.4 mm, 0.6 mm) or polycrystalline diamond (1.0 mm) | |
Nozzle diameters | 0.4 mm, 0.6 mm, 1.0 mm | |
Layer thickness | 0.2 mm, 0.3 mm, 0.5 mm (Other layer heights supported through slicer software) | |
Extruder temp | Up to 350°C | |
Build chamber temp | 30-50°C | |
Print bed temp | Up to 120°C | |
Removable print surface | SWITCHPLATE prime, SWITCHPLATE select | |
Max print speed | Up to 500 mm/s | |
Max throughput | Up to 166 cm³/h | |
Position accuracy | ±0.004 mm in XY, ±0.003 mm in Z | |
Drive technology | Stepper motors with steel reinforced belt drive in XY, Spindle with self-lubricating nut in Z | |
Connectivity | 10/100/1000 Base T Connection Ethernet Protocol, USB Port, BigRep Connect Ready with remote monitoring/control features | |
Slicing software | BigRep BLADE | |
Machine control | BigRep Kreuzboard | |
HMI | 12.1” touchscreen | |
Camera | Built-in chamber camera for real time remote monitoring | |
Power supply | 208-240 V, 50/60Hz, 16 A | |
Power consumption | Average (while printing): 660W, Peak: 3200W | |
External dimensions | 1634 mm x 1069 mm x 1829 mm (x,y,z) | |
Weight | 560 kg printer in base configuration, 62 kg Infinity Box | |
