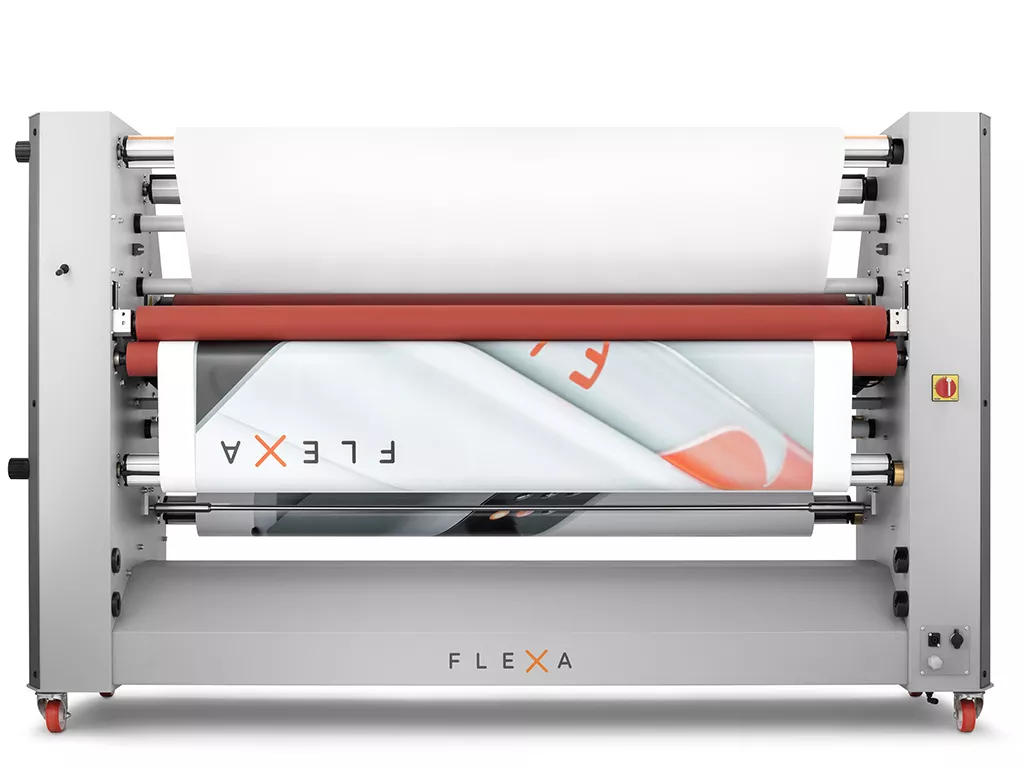

Easy Plus is the new wide-format single hot or dual hot professional laminator (up to 140°C) with integrated Wi-Fi/LAN module.
The working temperature of up to 140°C makes this professional laminator extremely versatile, as it can be used both in visual communication, packaging and industry.
With the new Easy Plus it is possible to laminate, mount images, also on extra wide-format panels, encapsulate, apply application-tape and double-sided adhesive. It is ideal for laminating corrugated board (packaging) and for laying protective films on panels, sheets, wood, plexiglas®, glass.
It is also suitable for coupling technical materials in industry.
The integrated Wi-Fi/LAN module enables remote monitoring of crucial machine data and machining parameters through PC or mobile devices, and it is useful for scheduled maintenance and avoiding machine downtime.
This innovative laminator comes with a user-friendly software interface and a touchscreen display that provides quick access to a multitude of functions. With a simple touch the most important parameters such as temperature, pressure and speed are set with absolute precision to achieve quality work.
Other functions include the ability to store three different processes, track rolled meters, implement automatic stop mechanisms, set up a weekly scheduler for on/off cycles, and much more. These functions minimize material waste, and guarantee increased productivity.
Easy Plus lamiantor is designed to align with the principles of INDUSTRY 4.0.
Professional Laminator with integrated Wi-Fi/LAN and touch screen
| EASY LITE 160 | |
|---|---|
| Working width | 1600 mm (65 in) |
| Max. space between rollers | 60 mm (2,3 in) |
| Silicon coated rollers | Ø 130 mm (5 mm) |
| Heated upper and lower roller | Up to 140°C (284 °F) (lower roller optional) |
| Maximum external roll diameter | Ø 300 mm (12 in) |
| Max. speed | 10 m/min. (up to 20 m/min. optional) |
| Working height | 900 mm (35 in) |
| Dimensions (W x L x H) | 2270 x 850 x 1460 mm (89 x 33 x 57 in) |
| Power Supply | 230V - 50 Hz - 4000 W 400V (3Ph+N+PE) - 50 Hz - 4000 W (with heated lower roller) |
| Weight | 370 kg (816 lbs) |
